Integration Testing With Keploy

What is Integration Testing ?

Integration testing is a software testing process that combines individual software modules into larger subsystems or components to evaluate their interactions. It is conducted after unit testing and before system testing. The primary objective of integration testing is to detect defects that occur when different modules are integrated and interact.

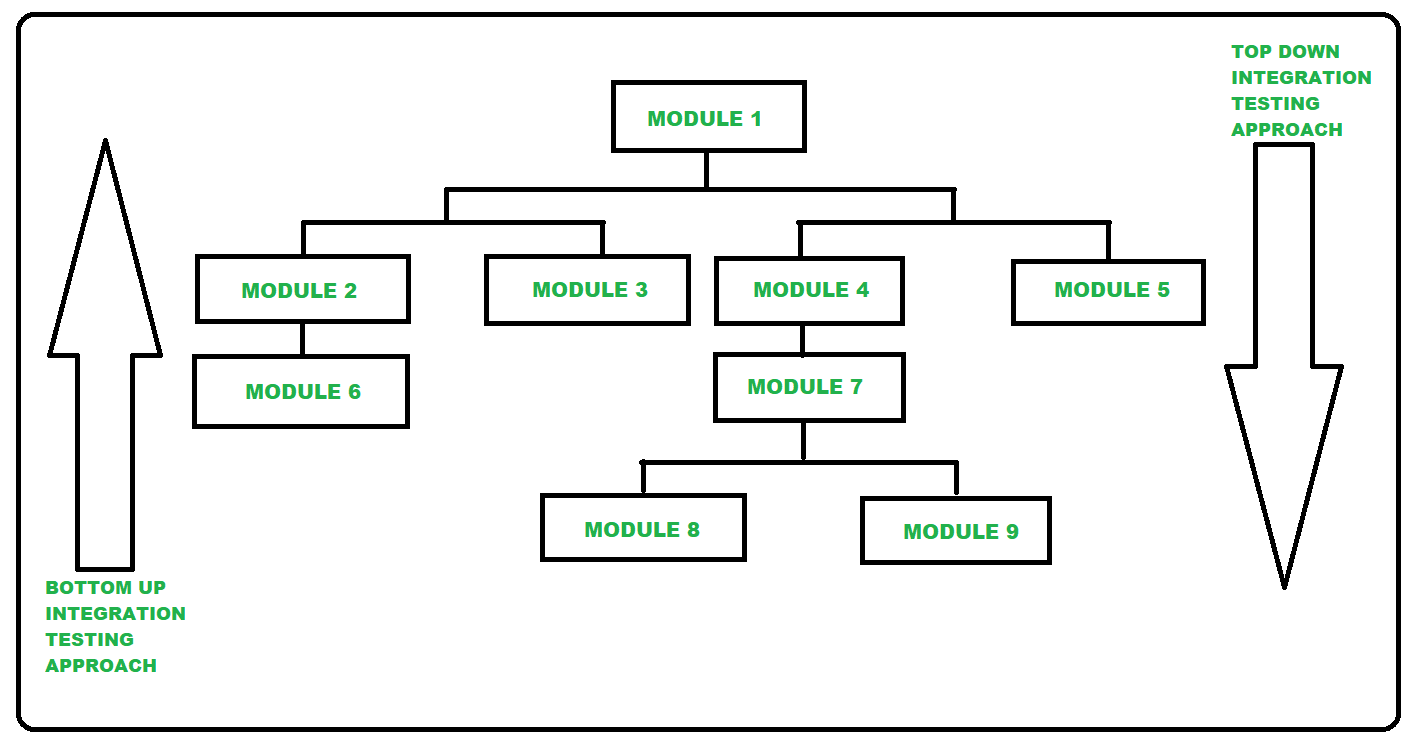

Types of Integration Testing

There are two main types of integration testing:

1. Top-down integration testing: This type of integration testing starts with the highest-level modules and then works down to the lower-level modules. It begins by testing the topmost modules, which are often the user interfaces or main control modules, and progressively integrates and tests the lower-level modules. Stubs are used to simulate the lower-level modules that are not yet integrated. This approach helps in early detection of major design flaws and ensures that the high-level functionality is tested first. However, it may require significant effort to create stubs and can be challenging if lower-level modules are complex or not well-defined.

2. Bottom-up integration testing: This type of integration testing starts with the lowest-level modules and then works up to the higher-level modules. It begins by testing the lowest-level modules, which are often the building blocks of the system, and progressively integrates and tests the higher-level modules. Drivers are used to simulate the higher-level modules that are not yet integrated. This approach helps in early detection of major design flaws and ensures that the low-level functionality is tested first. However, it may require significant effort to create drivers and can be challenging if higher-level modules are complex or not well-defined.

Both types of integration testing are essential for ensuring that all components of a software application work together correctly.

How to perform Integration Testing ?

Integration testing can be performed using a variety of techniques, including:

1. Stubs: Stubs are dummy modules that are used to simulate the behaviour of other modules that are not yet ready. They act as placeholders for the actual modules, allowing developers to test the integration of different parts of the system without waiting for all components to be fully developed. Stubs typically return predefined responses to function calls, enabling the testing of higher-level modules in isolation.
2. Drivers: Drivers are modules that are used to control the execution of other modules.
3. Test harnesses: Test harnesses are frameworks that automate the execution of integration tests. They provide the necessary infrastructure to execute tests, manage test data, and record results. Test harnesses often include tools for setting up test environments, generating test cases, and simulating interactions between different modules. By automating these tasks, test harnesses help ensure consistent and repeatable testing processes, making it easier to identify and diagnose integration issues.

Challenges of Traditional Integration Testing Method

1. Complexity of Systems:

   • It can be difficult to integrate different modules, parts, and outside services into complex software programs, requiring extensive testing techniques. The requirement to make sure that every component of the system handles data consistently and communicates effectively gives rise to this complexity. Furthermore, the dependencies, configurations, and functional properties of various modules may differ, which may lead to unexpected challenges during integration.

2. Dependency Management:

   • Managing dependencies between components and ensuring they function together harmoniously can be complex, especially in distributed systems. Dependencies can include shared libraries, APIs, databases, and third-party services. Each dependency may have its own versioning, configuration, and compatibility requirements, which can lead to conflicts and integration issues. It is additionally challenging to identify and fix issues when changes to one component have a ripple effect on others. To ensure that every component function as a whole, detailed documentation, version control, and automated testing are necessary for effective dependency management.

3. Data Management:

   • Handling realistic test data scenarios, ensuring data integrity, and maintaining consistency across different testing environments pose challenges in integration testing. Creating and managing test data that accurately reflects real-world scenarios can be time-consuming and complex. Additionally, ensuring that test data remains consistent across various environments (development, staging, production) is crucial to avoid discrepancies that could lead to false positives or negatives in test results. Furthermore, managing data versioning and synchronization between different modules and services adds another layer of complexity to the integration testing process.

4. Environment Configuration:

   • Configuring testing environments to accurately reflect production while providing necessary isolation for testing is time-consuming and error-prone. Ensuring that the test environment mirrors the production environment in terms of hardware, software, network configurations, and data can be challenging. Differences between environments can lead to discrepancies in test results, making it difficult to identify true integration issues. Additionally, maintaining multiple environments for different stages of testing (development, staging, production) requires significant resources and coordination. Properly managing environment variables, secrets, and configurations across these environments adds another layer of complexity.

5. Timing and Coordination:

   • Coordinating testing efforts across multiple teams or development cycles and ensuring all components are ready for testing at the same time require effective communication and coordination. This challenge is compounded by varying schedules, priorities, and resource availability among teams. Misalignment in timelines can lead to delays and bottlenecks, impacting the overall project timeline. Additionally, synchronizing test environments and ensuring consistent configurations across different teams can be difficult. Effective use of project management tools, regular status meetings, and clear documentation are essential to mitigate these challenges.

6. Testing Third-Party Integrations:

   • Testing integration with third-party APIs, libraries, or services introduces complexity as teams have limited control over their behaviour and availability. These third-party components can change without notice, leading to unexpected failures. Additionally, rate limits, authentication issues, and network latency can further complicate testing. Ensuring compatibility with different versions and handling deprecated features also pose significant challenges.

7. Regression Testing:

   • Managing regression testing across multiple integration points to ensure new features or changes do not introduce compatibility issues is challenging, especially in large systems. This involves verifying that existing functionalities continue to work as expected after modifications. The complexity increases with the number of integration points, as each point must be tested for potential side effects. Additionally, maintaining an up-to-date suite of regression tests can be resource-intensive, requiring continuous updates to test cases and test data to reflect the current state of the system. Automated regression testing tools can help, but they also require significant setup and maintenance efforts.

8. Scalability and Performance Testing:

   • Testing the scalability and performance of integrated systems under various conditions and loads requires specialized tools and expertise, posing resource-intensive challenges. This involves simulating real-world usage patterns, peak loads, and stress conditions to ensure the system can handle high traffic and data volumes without degradation. Additionally, identifying performance bottlenecks, memory leaks, and concurrency issues requires in-depth analysis and profiling. Ensuring that the system scales efficiently with increasing load and maintains optimal performance across different environments adds another layer of complexity.

Addressing these challenges requires careful planning, collaboration between development and testing teams, and the adoption of effective testing strategies and tools. This is where Keploy comes into the play.

Overcoming Integration Testing Challenges with Keploy

1. Complexity of Systems:

   • Keploy simplifies integration testing with its user-friendly platform and automation capabilities. It streamlines the testing process, even in complex systems, by providing an intuitive interface for recording interactions and generating test cases.

2. Dependency Management:

   • Keploy automates stub generation, eliminating the need for manual creation of stubs or mock objects, which can be time-consuming and error-prone. Instead, it generates realistic stubs based on recorded interactions during the testing process. By using recorded interactions to create stubs, Keploy ensures that the dependencies are accurately simulated, leading to more reliable and comprehensive integration tests.

3. Data Management:

   • Keploy addresses the challenges of data management in integration testing through its advanced features and capabilities. It automates the process of generating test data, which eliminates the need for manual data creation and reduces the risk of human error. This ensures that test data is always available and consistent across different test runs.

4. Environment Configuration:

   • Keploy addresses the challenge of environment configuration in integration testing through its native integration feature, which simplifies the setup process and accelerates testing. It seamlessly integrates with your development setups, allowing for quick and easy configuration without the need for extensive manual setup. This reduces the time and effort required to mirror production environments for testing purposes. It also provides a way to isolate test environments, ensuring that tests do not interfere with each other and that the testing environment accurately reflects production. This isolation helps maintain the integrity of test results.

5. Timing and Coordination:

   • Keploy provides a centralized platform where test cases can be recorded, stored, and shared. This centralization ensures that all team members have access to the same set of test cases and stub configurations, improving coordination and consistency. It provides real-time feedback and reports on the integration tests, allowing teams to quickly identify and address issues, thus improving coordination and responsiveness.

Benefits of Integration Testing with Keploy

Performing integration testing with Keploy AI offers numerous benefits:

• Early Defect Identification: Identify defects early in the development lifecycle, reducing the risk of issues in later stages.
• Seamless Integration: Ensure that different modules work together seamlessly, enhancing the overall quality of the software application.
• Enhanced Efficiency: Streamline testing processes and improve productivity with Keploy AI's automation and intelligent features.

With Keploy AI, performing integration testing has never been easier or more effective.

Keploy vs Traditional Methods

Aspect	Traditional Method	With Keploy
Stub Generation	Manual creation of stubs or mock objects.	Automated stub generation based on recorded interactions.
Test Generation	Manual scripting of test cases based on predefined scenarios.	Automated test case generation from recorded interactions.
Testing Scenarios	Limited coverage of edge cases and complex scenarios.	Simulates wide range of scenarios, including edge cases and error handling.
Collaborative Development	Limited collaboration due to manual processes.	Facilitates collaboration with centralized platform for test recording and sharing.
Continuous Improvement	Limited insights and analysis for optimization.	Provides detailed analytics and reporting for continuous improvement.

Conclusion

Integration testing is essential in software development, addressing challenges like system complexity, dependency management, data handling, environment configuration, and coordination. Keploy provides a robust solution to these challenges.

By providing a user-friendly platform with automation capabilities, Keploy simplifies the integration testing process, even in complex systems. Its automated stub generation and smart test generation features streamline dependency management and data handling, ensuring comprehensive coverage and data integrity.

Furthermore, Keploy's native integration seamlessly integrates with development setups, eliminating the need for complex environment configuration and accelerating testing. It also fosters collaboration between teams by providing a centralized platform for recording test cases and sharing stub configurations, simplifying coordination efforts.

In conclusion, Keploy empowers development teams to overcome the challenges of integration testing effectively, enabling them to deliver high-quality software with confidence and efficiency.

FAQs

1. What is the primary goal of integration testing?

The primary goal of integration testing is to identify and resolve any defects that arise when different software modules are combined and interact with each other. This ensures that the integrated components function correctly as a whole.

2. How does Keploy simplify integration testing?

Keploy simplifies integration testing by automating stub generation, dynamically creating test cases from recorded interactions, and providing tools for error debugging and analysis. This reduces the manual effort required and ensures comprehensive test coverage. Keploy's intelligent automation, dynamic test generation, and collaborative features make integration testing more straightforward, efficient, and comprehensive.

3. What types of integration testing can be performed using Keploy?

Keploy supports both top-down and bottom-up integration testing. It can simulate the behaviours of high-level and low-level modules through automated stub generation and dynamic test case creation. Additionally, Keploy facilitates hybrid integration testing, combining both approaches to ensure comprehensive coverage. This flexibility allows for thorough testing of complex systems, ensuring that all components interact seamlessly.

4. How does Keploy handle dependencies between modules during integration testing?

Keploy handles dependencies between modules during integration testing by automatically generating realistic stubs based on recorded interactions. This process eliminates the need for manual creation of stubs or mock objects, thereby simplifying dependency management.

This approach simplifies dependency management and enhances the reliability of integration tests.

5. Can Keploy be integrated with existing unit testing frameworks?

Yes, Keploy can be integrated with existing unit testing frameworks. It seamlessly integrates with popular frameworks such as JUnit (Java), NUnit (.NET), PHPUnit (PHP), PyTest (Python), Jasmine (JavaScript), and Selenium (web applications). This ensures compatibility with existing unit testing workflows and enhances the overall testing process.

6. What are the benefits of using Keploy for integration testing compared to traditional methods?

Keploy offers numerous benefits, including automated test case generation, simplified dependency management, enhanced testing efficiency, and improved collaboration between teams. It provides a user-friendly platform that streamlines the integration testing process, even in complex systems.
